BN100 Laptop B Ultrasonic Scanner for verterinary purpose 00 overview

The BN100 series Black and White Ultrasound machine from China HSVET performs obstetric measurement, heart measurement, and lean meat rate calculation, covering the 6 most common animals including pigs, sheep, cattle, horses, dogs, and cats, therefore, the equipment is suitable for both pet hospitals and livestock farms.

  • Medical examination and diagnosis of lesions in tissues and organs (liver, gallbladder, spleen, kidney, bladder, uterus, etc.) can also be performed for small and medium-sized animals such as dogs and cats.
  • Pregnancy testing and backfat thickness measurements are mainly performed for large animals such as cattle, sheep, horses, and pigs.



BN100 Laptop B Ultrasonic Images
BN100 Laptop B Ultrasonic Images




2 models are depending on the type of probe supported

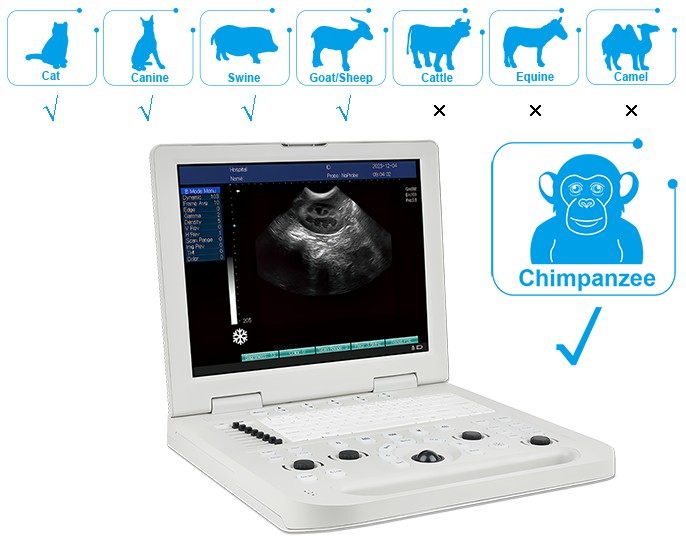

  • BN101
  • Price: from $ 1450
  • Supports 3 kinds of probes
  • 3.5Mhz convex probe
  • 6.5Mhz micro convex probe
  • 7.5Mhz linear probe
  • Price: from $ 1450
  • Inquiry Now!

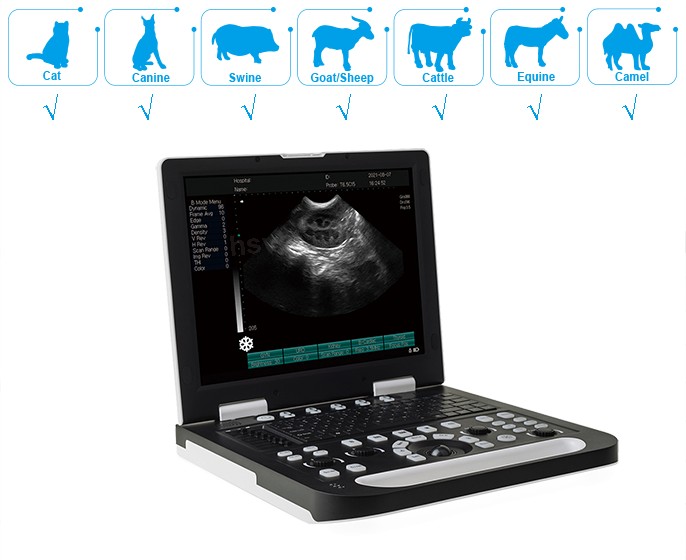

  • BN102
  • Price: from $ 2000
  • Supports 7 kinds of probes
  • 3.5Mhz convex probe
  • 6.5Mhz micro convex probe
  • 7.5Mhz linear probe
  • 6.5Mhz sheep with handle probe
  • 6.5MHz rectal linear array probe for veterinary use
  • 4.0MHz rectal convex array probe for veterinary use
  • 3.5MHz backfat probe
  • Price: from $ 2000
  • Inquiry Now!

BN100 Laptop B Ultrasonic Scanner sensors explain

Features

  • Laptop style, Compact Size, 36 * 35 * 6.5 cm, 4.2 kgs net weight
  • A 15-inch LCD Screen, 1024 * 768 dpi, is embedded, Maximum unfold of 135 degrees. BN100 Laptop B Ultrasonic Scanner for verterinary purpose 02 screen 15 inch
  • Dual probe ports, and automatic adaptive the transducer
  • Multi-function Buttons with backlight, easy to recognize even in a room that lacks lights
  • BN100 Laptop B Ultrasonic Scanner for verterinary purpose 05 buttons
  • QWER Full-size keyboard BN100 Laptop B Ultrasonic Scanner for verterinary purpose 06 keywords
  • Output Ports:
    • 1 * Video output
    • 1 * VGA,
    • 2 * USB 2.0
    • 1 * DICOM format
    • 1 * Power input
    • 1 * Power on/off Button
  • ARM CPU brings fast speed
  • 32G Built-in storage space, Around 16 G are free after installing the system and software;
  • Five Image Display Modes

More Parameters

The Hardware

  • The Convex probe with 96 elements, and the rectal probe with 128 elements;
  • Two Languages: Chinese and one among English, Spanish, Russian, French, and Portuguese.
  • Video Printer: Mitsubishi and SONY
  • Embedded 6400 mAh lithium battery, continuously working for more than 4 hours.
  • The battery charger for laptop B-ultrasound allows input from 100V to 240V which is adaptive and outputs 14V 3.0A.
  • Packing Dimension: 500 * 500 * 230 mm
  • Gross weight: 7.5 KG

Other Parameters

  • 16 Channels
  • Video playback 256 FPS
  • 256 greyscale,
  • Dynamic Range from 0 to 135 dB
  • Gain Range from 0 to 100 dB
  • more than 98 annotation place
  • The blind area is less than 4 mm
  • Max detect Depth is 300 mm
  • 16 kinds of magnification can be selected to make the diagnosis of lesions more accurate
  • Geometric accuracy: horizontal ≤5%, longitudinal ≤5%
  • Resolution: lateral ≤ 2mm, axial ≤ 1mm

The Functions

  • Image Rotary and Flip Reverse and B/W Switch;
  • Provides measurement software packages for medical specialties such as gynecology, urology, kidney, thyroid, etc.
  • Puncture guide
  • lithotripsy positioning
  • Provides Grid-scale and Dot-scale
  • Text & Character:
    • Date and Time
    • Patient Name, Gender, Age
    • Doctor Name,
    • Hospital Name
    • Annotations (in full screen)
  • Image Pre-processing:
    • variable aperture,
    • dynamic trace,
    • dynamic digital filtering
  • Image post-processing
    • 8 pseudo-color
    • 8 kinds of γ correction,
    • line correlation,
    • 16 level frame correlation,
    • point and line correlation,
    • linear interpolation,
    • digital space-time filtering,
    • digital edge enhancement
